Installing an A1 Electric custom fit power window kit in a Chevy Silverado pickup truck. Installing the wiring Page 5

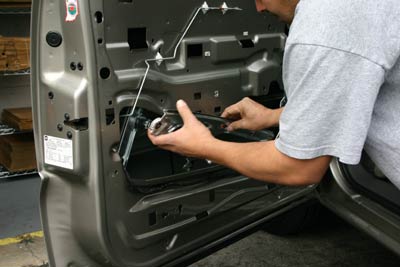

With our window taped up so it won't fall down, (and ruin our weekend!) we can safely proceed.  The 6 bolts (red arrows) in the upper photo are removed.  The regulator assembly is then twisted and brought out of the large opening in the door.
