Power Window Switch Kits

All of our switch kits come complete with switches and wiring harness.
Our switch kits are designed to work with all of the power window installation kits we sell
Click on switch kits for current pricing and ordering information

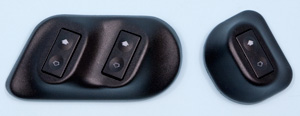

4990-10-421 switch kit Our most popular switch kit!

4990-10-421 Electric Life Illuminated Joker switch kit.
(approximate size (left 5 1/2"W X 2 3/4"H)
(right 2 1/2"W X 2 3/4"H))
Surface mount switch panels less than 1/4 inch mounting depth

4990-50-421 4 door switch kit with wiring 4990-50-421  Electric Life 4 door Joker style switch kit.
(approximate size (drivers 4 inches wide X 6 1/2 inches high) (passenger 2 1/2"W X 2 3/4"H))
4990-10-142 switch kit

4990-10-142
Electric Life Illuminated rocker switch kit. Switches can be mounted in supplied panels as displayed in top part of photo or they can be mounted without the panels as displayed in lower part of photo.

(bezel size is 2 1/2"W X 2 3/4"H
Needs 1" mounting depth)

(Individual switches measure
1 5/8"H X 7/8"W and needs approximately
1 3/4 inches of mounting depth if
used without the bezels)

4980-21-007 switch kit 4980-21-007
Electric Life 2 door flush mount switch kit for center console or dash mounting.

(approximate size each switch 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
4980-31-009 switch kit 4980-31-009
Electric Life 2 door flush mount switch kit with 3 switches. Comes with inline and side by side bezels for drivers door and a single for the passenger door.

(approximate size (left 2"W X 2"H or 1 1/8"W X 3 3/8"H)(right (single) 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
SK3-OEGM switch kit SK3-RGM 2 door chrome switch kits.   Kits come with dual drivers switch and single passenger switch.
(approximate size (left 3"W X 1 3/4"H)(right 2"W X 1 3/4"H))
SK2-OEGM switch kit SK2-RGM
2 door chrome switch kit perfect  for center console or dash mounting.
(approximate size  3"W X 1 3/4"H)

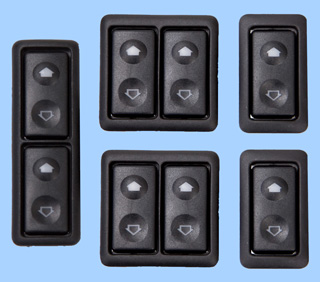

SK7-OEGM chrome switches for 4 windows SK7-RGM 4 window chrome switch kit. Comes with 4 way drivers switch and 3 single switches.

(approximate switch size (drivers 4 1/2"W X 1 3/4"H)(passenger 2"W X 1 3/4"H))
Billet switch kit  SK3-99021 SK3-99021
Electric Life 2 door billet aluminum switch kit with 3 illuminated switches (door panel mount).  Kit comes complete with aluminum faced switches, aluminum trim rings, back plates and wiring.

(approximate size (left 2"W X 2"H)
(right (single) 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
Black Billet switch kit  SK3-99021 SK3-99021-B
Electric Life 2 door black billet aluminum switch kit with 3 illuminated switches (door panel mount).  Kit comes complete with aluminum faced switches, black plastic trim rings and wiring.

(approximate size (left 2"W X 2"H)
(right (single) 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
Billet switch kit  SK2-99020 SK2-99020
Electric Life 2 door billet aluminum switch kit with 2 illuminated switches for center console or dash mounting.  Kit comes complete with aluminum faced switches,  aluminum trim rings, back plates and wiring.

(approximate size each switch 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
Black Billet switch kit  SK2-99020-B SK2-99020-B
Electric Life 2 door black billet aluminum switch kit with 2 illuminated switches for center console or dash mounting.  Kit comes complete with aluminum faced switches, black plastic trim rings and wiring.

(approximate size each switch 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)

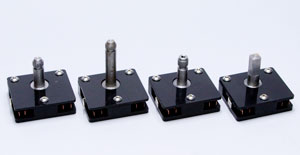

Crank Handle Switches Power Crank Handle Switches.
Use your window handles to activate your power windows.
  • 45820  Short shaft with GM spline
  • 45821  Long shaft with GM spline
  • 45822  Ford spline
  • 45823  Square spline
4990-10-419x20 switch kit 4990-10-419   &   4990-10-420
Electric Life 2 door flush mount switch kit with push/pull switches. Switches can be mounted in armrest or door panel.  4990-10-419 comes with dual bezel for side by side mounting and 4990-10-420 comes with bezel for inline mounting.

(Approximate size (left 2 1/2"W X 2 1/4"H or 1 3/8" X 4 1/8")
(right 1 3/8"W X 2 1/4"H))
(Needs 2" mounting depth)
33040122 2 door power window switch kit 33040122

Spal power window switch kit for 2 windows.  2 switches in dual flush mount panel designed for center console or dash mounting. (Aproximate size 2" X 2")
3304-0147 Flush mount switch kit 3304-0147
Spal 2 door flush mount switch kit with 3 switches. Comes with inline and side by side bezels for drivers door and a single for the passenger door.

(approximate size (left 2"W X 2"H or 1 1/8"W X 3 3/8"H)(right (single) 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
33040147x2 4 window switch kit for console mounting 33040147x2
Spal 4 window flush mount center console switch kit with 6 switches. Comes with 4 switches for center console mount and 2 single switches for rear windows. Switches shown mounted in bezels. (Bezels and switches are similar to 3304-0147 shown above)

(approximate size (dual trim rings 2"W X 2"H or 1 1/8"W X 3 3/8"H)(single trim rings 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
Spal 33040188 Euro Pod Switch Kit 33040188
Spal 2 door surface mount kit with 3 switches (door panel mount).  Switches mount in Euro Style Pods which are mounted onto door panels.

(approximate size (left 5 1/2"W X 2 3/4"H)
(right 2 1/2"W X 2 3/4"H)
(Needs less than 1/4"  mounting depth)
Billet switch kit  SK3-990007 3304-0128
Spal 2 door surface mount kit with 3 switches (door panel mount).  Switches mount in rectangular trim panels which can be mounted to door panels.

(approximate size (left 2 5/8"W X 2 1/8"H)
(right 1 5/8"W X 2 1/8"H)
(Needs 1/2" minimum mounting depth)
4990-50-227 4 door switch kit 4990-50-227
Electric Life 4 door power window switch kit.  This kit can be used with or without the included spacers.

(approximate size: 5 1/2" wide X 2" high)
(spacer height 7/16")
(Needs 1 1/4" mounting depth when used without spacers)
SK7-99022 Billet Aluminum Switch Kit SK7-99022
Electric Life 4 window billet aluminum faced switch kit!  Has quad switch assembly for drivers door and 3 individual switches for passenger windows.

(approximate switch size (drivers 3 5/8"W X 1 7/8"H)(passenger 1 1/8"W X 1 7/8"H))
4990-10-201 switch kit 4990-10-201
Electric Life Illuminated rocker switch kit. Switches can be mounted in supplied panels as displayed or they can be mounted without the panels.

(Approximate size 2 1/2"W X 2 3/4"H)
(Needs 1" mounting depth)
door lock switch kit DLSW-1
flush mount power door lock switch kit for use with the A1 Electric/MES central door lock kits.

(approximate size 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
door lock switch kit DLSW-LT
Illuminated flush mount power door lock switch kit for use with A1 Electric/MES central door lock kits.

(approximate size 1 1/8"W X 2"H)
(Needs 1 3/4" mounting depth)
SK1-OEGM door lock switch kit SK1-OEGM
Chrome door lock switch kit for use with the A1 Electric/MES central door lock kits.

(approximate size (2"W X 1 3/4"H)
