Typical Examples of Power Door Lock Installations, Page 2
Mounting door lock actuators in a Ford Ranger

Ranger Pickup This door lock actuator is being held in the approximate mounting position that it will be fastened in a 2000 Ford Ranger. The actuator will be mounted inside the door with the rod bent appropriately to meet the lock knob rod.

door lock linkage inside of Ranger door This photo shows the view inside of the Ranger door. The rod is bent to meet the existing lock knob rod and fastened with the clamp. Behind the rods, you can see the door latch.

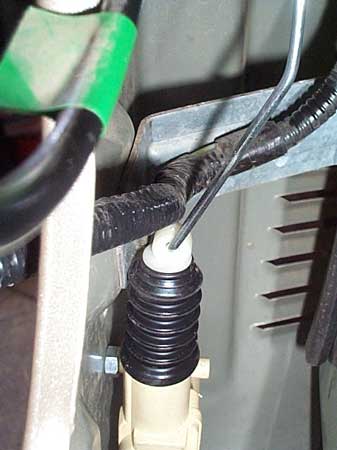

door lock actuator in Ranger door This is another view of the inside of the Ranger door. Notice how the actuator has been shimmed away from the door with a nut, so that it clears the wiring and bracket inside the door.
