Installing an Electric Life custom fit power window
kit in a Ford F150 Pickup.
Installing the power window regulators

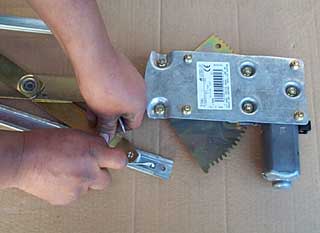

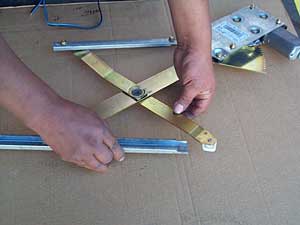

The channels that were saved in the previous step are now installed onto our new Electric Life regulators. The tabs at the ends of the channels are bent up with a screwdriver. This is done so the channels don't fall off when we put the assembly back in the door. The blue and black motor wires are also attached to the motor at this time. Finding the motor connector, once the unit is mounted in the door, can be a little tricky.
In case you were wondering, the mechanism is called a window regulator because this mechanism is the part that "regulates" the height of the window.
|PREVIOUS NEXT PAGE|
1.........................Removing the door panels
Section 2...............Removing the manual regulators
Section 3.....Installing the power window regulators
Section 4..............Installing the switches and wiring
