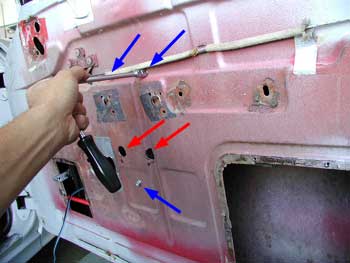

The roller bar is inserted into the roller channel on the bottom of the glass. The regulator assembly is inserted into the door and secured to the 3 holes previously marked and drilled (blue arrows). To ease installation, we have also drilled 2 access holes (red arrows) in the door to allow us to fasten the roller bar to the regulator mounting plate.

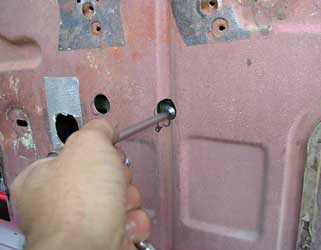

The lower photos show us tightening the bolts from the regulator mounting plate to the roller bar through the access holes previously drilled. The lower right photo is a shot from inside the doors lower right access hole looking forward and up. You can see our socket (red arrow) tightening the roller bar (green arrow) onto the regulator plate. The blue arrow is pointing at the roller channel attached to the bottom of the glass, and the yellow arrow points to the window motor.
