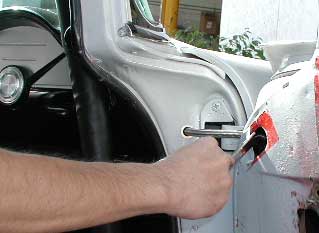

We used a Sawzall to clear away a small piece of sheet metal in the kick panel that would prevent the stainless steel tube from entering the passenger compartment.

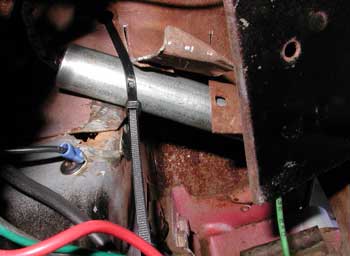

With the wire loops installed, the wiring is passed from the door, through the loop and into the vehicle. The door is opened and closed slowly to make sure the wiring and loops are going to clear everything. The wiring and loop are going to need a little friendly persuasion to make things work nicely. We used a 6 inch piece of 3/4 inch emt pipe to fit over the end of the sleeve. The tube is tie strapped to the sheet metal in the inner kick panel. This tube will guide our wires and stainless steel tube out of harms way when the door is closed.
