Installing Power Windows in a Jeep Wrangler

Jeep Wrangler

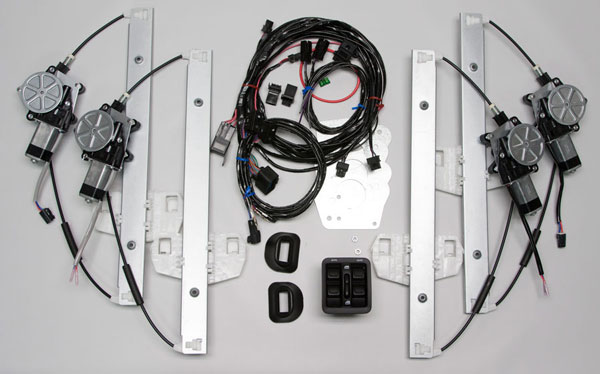

This top of the line kit from A1 Electric includes power window regulators and motor assemblies for 4 doors,
custom wiring harness with quick disconnects for the doors, factory power window switch with one touch switches
that mounts in the dash in the factory location, individual switches for the rear doors,
motor mounting plates and detailed installation instructions.

Power windows in Jeep Wrangler JK

Jeep Wrangler Power Window Kit for 2011-2017 JK models Jeep Wrangler Power Window Kit

Fits 2011-2017 Wrangler JK 4 door

This kit comes with step by step instructions to allow backyard mechanics to do a professional installation.

Removing door panel on 2011-2017 JK models Door panels are removed

Removing the carrier panel 2011-2017 JK models Inner carrier panel is removed.  Our customers tell us that removing the door panls and carrier panels is the toughest part of the job.

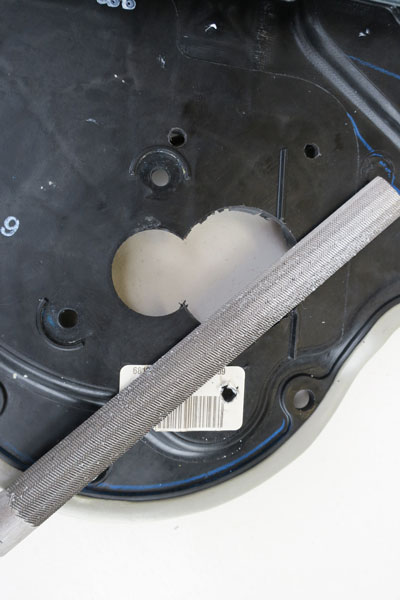

Drill and modify carrier panel on 2011-2017 JK models Using template, drill holes and modify carrier panel to fit new motor and regulator assemblies.

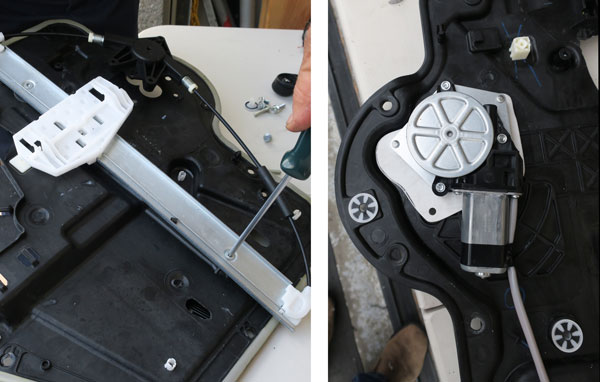

Installing motor and regulator in 2011-2017 JK models regulator is attached to carrier panel and motor is mounted to carrier panel with motor mounting plate.

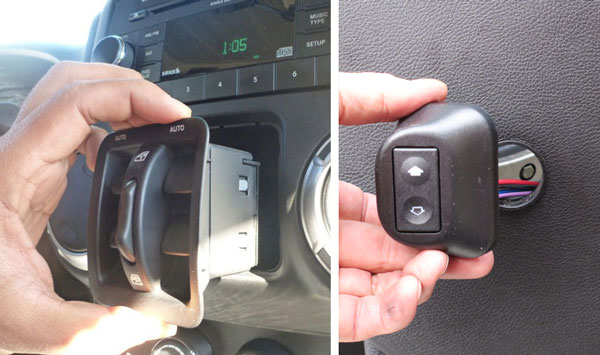

Switch mounts in place of pocket in dash on 2011-2017 JK models Factory switch is mounted in place of pocket between the air registers in the dash.

Note that the switch snaps right into the existing hole. The front windows also have the auto down feature!

Switches and mounting panels are mounting over the old crank handle holes in rear doors.

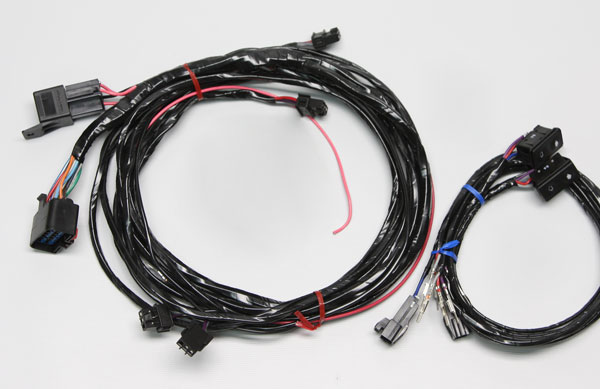

Jeep Wrangler Power Window wiring for 2011-2017 JK models Plug wiring into the mauin switch and run through dash and into the doors.  Wirng is preassembled making installation a breeze.  Unlike other kits, you do not have to assemble 26 wires into their respective connector blocks for the main switch.

2 or 3 wires are left loose in each door to allow them to be run through the cloth door jamb harness protectors.  Heavy duty connectors are installed allowing doors to be removed.

Simple 3 wire hookup.  One power wire goes to the battery, one goes to an ignition power source and the third gets grounded in the kick panel.

See more information on our Jeep Wrangler power window kit & power door lock kits.
These complete kits are all designed specifically for the Wrangler.
